M-SWITCH™
11-port/10-position Microfluidic Valve
Quick, Accurate, Automation
The M-SWITCH™ is a bidirectional 11-port / 10-way microfluidic valve for injection or selection of up to 10 different fluids or chips. The flow is bidirectional in the valve, meaning that the device can be used as a selector and a distributor for either multiplexing or demultiplexing purposes. It is compatible with Fluigent’s pressure controllers MFCS™ series and LineUp™ series, to achieve a highly stable flow rate. It has to be controlled with LineUp SWITCH EZ allowing for local control without a PC or valve actuation timing automation using Fluigent Software Solutions.

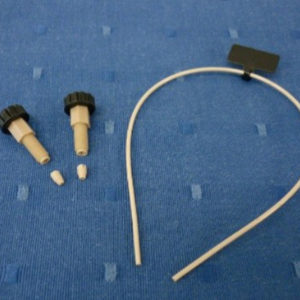

Package contents:
- 1 M-SWITCH™ device
- Flangeless fitting 1/4-28 (x11)
- Ferrules (x22)
- PEEK black plug (x11)
- FEP tubing 1/16”OD 0.10”ID (2.5m)
| Weight | 0,746 kg |
|---|---|
| Dimensions | 6 × 11 × 11 cm |
| Options | Device alone |
