RayDrop Tubing & Fitting Kit
A kit containing tubing, fitting, plug, and ferrule elements required for using the RayDrop Single Emulsion droplet generator developed and manufactured by Secoya.

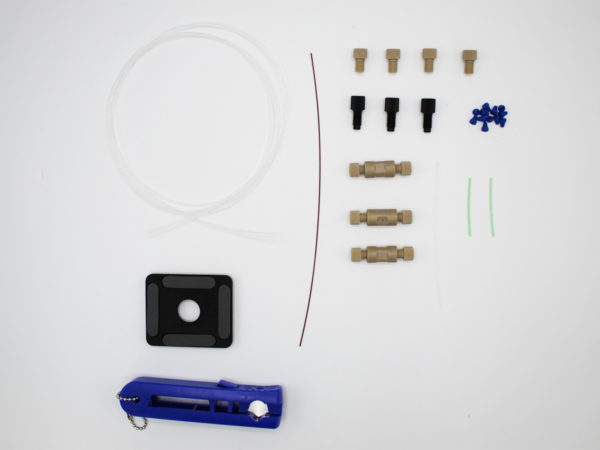

Kit contents:
- 1/32 PEEK tubing with 150 µm inner diameter (ID) (0.2 m)
- FEP tubing 1/16″OD 0.10″ID (2 m)
- FEP tubing 1/16″OD 0.020″ID (0.1 m)
- Sleeves 1/16″ –> 1/32″ (x2)
- 1/16 Union (x3)
- PEEK plug 1/4-28 Black (x3)
- Flangeless fitting 1/4-28 (x4)
- Blue ferrule (x8)
- Tube cutter (x1)
- RayDrop support (x1)
- Lateral rails (x4)
- Inline filters (x2) and fittings (x4)
